Edit General Solid - General Tab

A General Solid can be defined using a standard dialog, from which Boundary Surfaces can be picked graphically (individually, or using a Quadrilateral or Rhomboid Selection Tool).

Boundary Surfaces that define the 3D General Solid at listed numerically.

The Solid can be declared to be a Cavity (opening, hole), and not to be a part of the transport domain, using the check box Cavity.

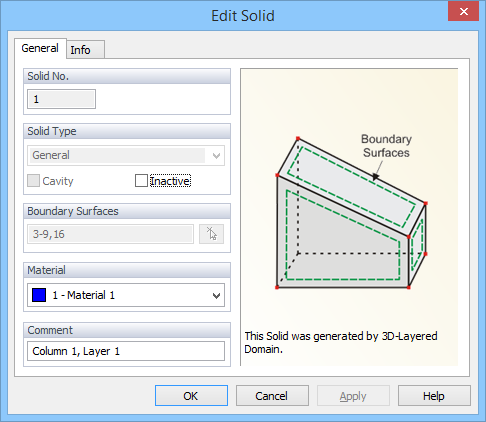

The Edit Solid dialog window (for 3D-General Solids) has four tabs: General Tab, FE-Mesh Tab, Integrated Objects tab, and an Info tab.
