Solute Transport BC

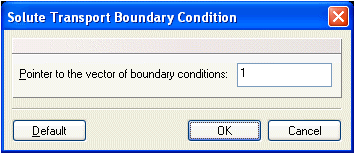

When you apply the solute transport boundary condition on a boundary, a windows appear asking you for "Pointer to the vector of boundary conditions". This pointer selects the concentration value from the vector of boundary conditions in the Solute Reaction Parameters dialog window (e.g., cBnd1) for boundaries with time-invariable water flow boundary conditions (e.g., Constant Head BC, Constant Flux BC, etc), and from the Time Variable Boundary Conditions dialog window (e.g., cValue1) for boundaries with time-variable water flow boundary conditions (e.g., Atmospheric BC, Time-Variable Head BC or Time-Variable Flux BC).

For boundaries with time-invariable water flow BCs, if the pointer is one, cBnd1 is selected, if the pointer is two, cBnd2 is selected, etc (up to 7).

For boundaries with time-variable water flow BCs, if the pointer is one, values from the column cVal1-1 are selected, if the pointer is two, values from the column cVal2-1 are selected, etc (up to 3).

See also the "How to Edit Boundary Conditions" topic.

See available Solute Transport Boundary Conditions.
