Edit Thickness Vectors

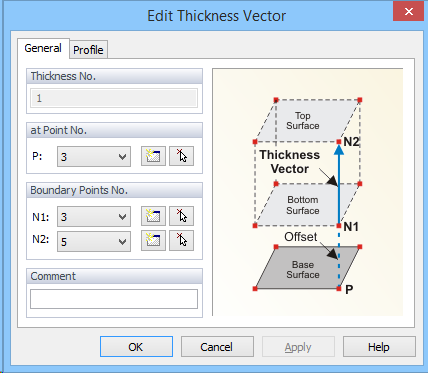

The term Thickness Vectors is used for a vector (usually but not always perpendicular to the Base Surface) that extends the Base Surface to form a solid (the three-dimensional computational domain). The Thickness Vector (i.e., its Boundary Points), is defined and can be edited in the Thickness dialog window.

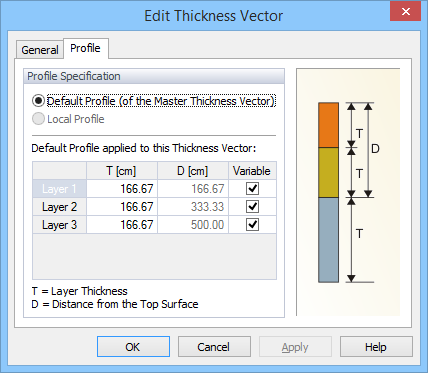

The Profile tab of Edit Thickness Vector dialog allows users to set the profile of the thickness vector.
