Cross-Sections

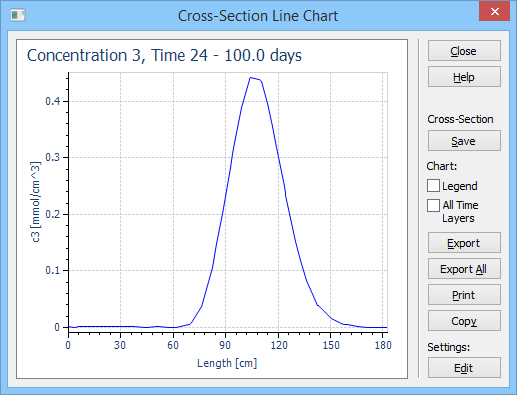

Displays values of a particular variable along an arbitrary cross-section. An example is shown below.

Once the definition of a Cross-Section is saved using the Save command, the Cross-Section graph can be, after reopening, animated simultaneously with animation in the View Window, and the displayed property and the print time can be changed without the need to close the window.

Data currently displayed in the graph can be exported into an ASCII file using the Export command. The Export All command can be used to export data of both the displayed variable, as well as those currently not displayed.

See the X-Y Graph topic for more information on this graph.
