Edit Drains

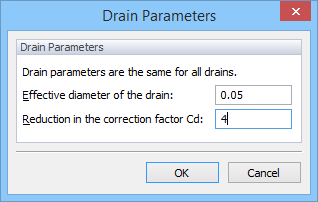

Inserts/Edits a Nodal Drain and specifies its parameters. The following Drain Parameters must be specified in the pop-up window: effective diameter of the Drain, and a reduction in the correction factor Cd.

A nodal drain option is enabled only when simple 2D (rectangular) geometries (with structured grids) are used. One needs to have a rectangular grid around the drain for this option to work. A nodal drain option would not (and does not) work with unstructured grids as created for general geometries.

See also the "How to Edit Domain Properties" topic.

Additional information about other Domain Properties.
