Edit Surface - Pipe

Parent Previous Next

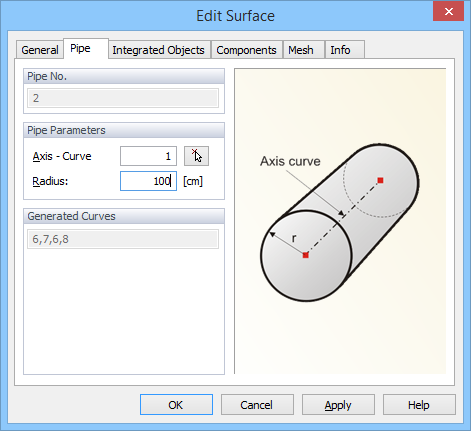

The second Tab of the Edit Surface dialog defines an axis curve and a radius, i.e., the basic objects of the Pipe Surface. Note: This surface creates three new supporting curves – two circles on both end of a pipe and a curve that is parallel to the pipe axis.



The Edit Surface dialog window has five basic tabs: General, Integrated Objects, Components, Mesh, and Info Tab. An additional tab is specific for a particular surface: either Pipe, Rotary, or B-Spline.
