FE-Mesh Statistics

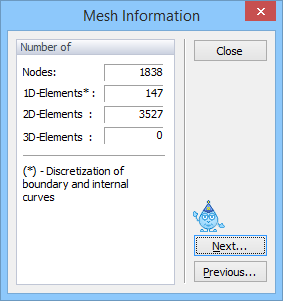

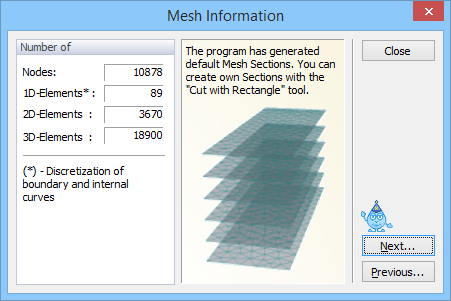

The FE-Mesh Statistics dialog windows provides information about the finite element mesh for two- and three-dimensional applications. For two-dimensional grids the window shows the number of finite element Nodes, the number of boundary 1D-Elements (boundary edges between boundary nodes), and the number of 2D-Elements (triangles). For three-dimensional grids the window shows the number of finite element Nodes (in the entire 3D domain), the number of boundary 1D-Elements (boundary edges between boundary nodes on the bottom plane, i.e., the 2D base surface of the transport domain), the number of 2D-Elements (the number of triangles on the bottom plane of the domain), and the number of 3D-Elements (tetrahedrals) in the entire transport domain.
