Mirror

All boundary objects can be manipulated using the Move, Copy, Rotate, Mirror, Stretch, or Skew operations in the Move – Copy, Rotate, Mirror, Stretch, and Skew dialog windows.. The command can be accessed either from the Tools menu or from the Transform Object part of the Domain Geometry version of the Tools (Edit) Bar on the right side of the View Window. A user first selects an object to be manipulated, then clicks on the command, and specifies the Vector of Translation for the Move or Copy operations, or the Angle of Rotation for a Rotation, or defines the Mirroring Plane/Axis for a Mirroring operation.

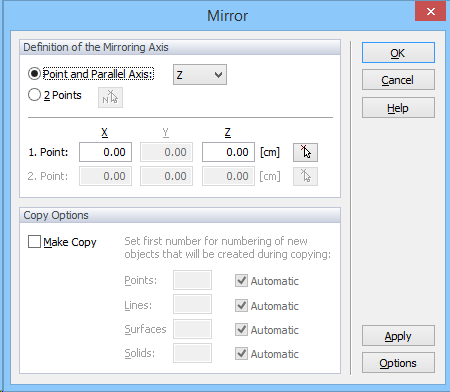

The command Mirror will call the Mirror dialog window (see the dialog for two-dimensional and three-dimensional problems).
