Tools

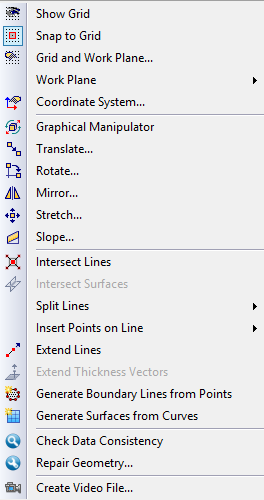

The Tools Menu offers the following commands:

Command	Brief Description
Show Grid	Shows or hides the Grid and the Work Plane
Snap to Grid	Snaps to Grid
Grid and Work Plane	Edits the origin and spacing of the Grid and Work Plane
Define Work Planes	Defines the Work Plane Set Origin of Work Plane Set X-Y Work Plane Set Y-Z Work Plane Set X-Z Work Plane
Coordinate System	Selects the Coordinate System
Graphical Manipulator	Selects parameters of the Graphical Manipulator
Translate	Moves selected object(s)
Rotate	Rotates selected object(s)
Mirror	Mirrors selected object(s)
Stretch	Stretches selected object(s)
Skew	Skews selected object(s)
Intersect Lines	Finds the intersect of two lines
Intersect Surfaces	Finds the intersect of two surfaces
Split Lines	Splits Lines Graphically n Points Distance
Insert Points on Line	Inserts Points on a Line Graphically n Points Distance
Generate Boundary Lines from Points	Generates Boundary Lines from Points
Generate Surfaces from Curves	Generates Surfaces from Curves
Check Data Consistency	Formerly Check Geometry. Checks the consistency of the transport domain
Repair Geometry	A consistency test of the domain boundaries
Create Video File	Creates a video file
